Smart WIM: Practical Innovation in Transportation Technology
This Smart WIM system project represents MWB’s approach to addressing complex transportation challenges through practical technology integration. Our operations-focused philosophy, combined with systematic project delivery, created a system enhancing both safety and efficiency in the transportation network.
Through improved infrastructure protection, enhanced operational efficiency, and reduced environmental impact, this Smart WIM implementation provides a practical case study for future transportation enforcement technology development.

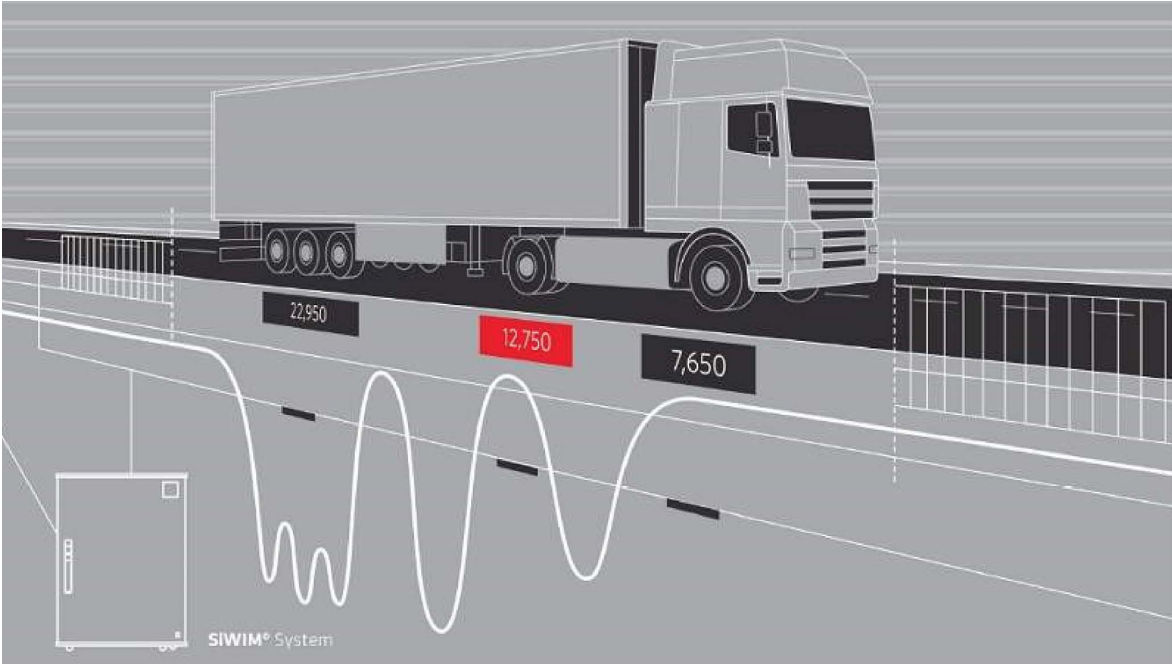

The Challenge: Addressing Transportation Monitoring Limitations
Transportation authorities worldwide face a persistent challenge: protecting critical infrastructure from damage caused by overweight commercial vehicles while maintaining efficient freight movement. Traditional weigh-in-motion systems have served their purpose but reveal significant limitations in modern applications.
These legacy systems typically achieve modest accuracy at highway speeds, require traffic disruptions that impact commerce, and operate with limited integration capabilities. The result is a fragmented approach that places heavy demands on human operators while underutilizing available technology.
When MWB was engaged to design a Smart Weigh-In-Motion system across multiple enforcement points, our team recognized this project would require comprehensive integration of proven and emerging technologies, with established enforcement practices.
MWB’s Approach: Comprehensive Smart WIM Design
Our design cantered on creating an integrated ecosystem extending beyond traditional weighing capabilities. The system includes:
- High-speed vehicle screening zones for initial assessment
- Precision verification stations for detailed analysis
- Automated license plate recognition networks
- Three-dimensional LiDAR scanning for dimensional analysis
- Dynamic messaging signs for real-time driver communication
- AI-enhanced surveillance networks
- Communications infrastructure enabling real-time decision-making
Each component operates within a framework designed for integration with existing enforcement practice while maintaining adaptability for future technological developments.
| Feature | Traditional WIM Systems | SMART WIM System |
|---|---|---|
| Speed Capability | Single-speed operation, typically requiring slowdown | Dual-speed architecture with high-speed pre-selection (130 km/h) and low-speed verification (≤20 km/h) |
| Accuracy Level | ±10% at highway speeds | ±10% at highway speeds (pre-selection), ±2 to 3% during verification |
| Dimensional Analysis | Limited or none (weight only) | Comprehensive 3D scanning with centimetre level precision for height, width, length, and axle spacing |
| Vehicle Identification | Manual visual confirmation | Automated ANPR with database integration and multi-angle capture |
| Driver Communication | Static signage or manual direction | VMS with vehicle plate specific instructions and graphics |
| Data Integration | Isolated weight data only | Comprehensive fusion of weight, dimension, identification, and permit status |
| Enforcement Options | Binary (pass/fail) | Sophisticated tiered response based on violation severity and vehicle characteristics |
| Evasion Prevention | Limited or manual monitoring | Automated detection systems with predictive capabilities |
| Traffic Impact | Often requires all vehicles to slow down | Minimal impact on compliant vehicles (no slowdown required) |
| Data Analysis | Basic weight statistics | Comprehensive analytics for enforcement optimization and infrastructure management |
| Communication Infrastructure | Basic local connections | High-speed fiberoptic or MPLS backbone with redundant systems and encryption |
| Processing Capability | Simple threshold checks | Edge computing |
| Integration Capability | Standalone operation | Capability to integrate with external enforcement and permitting systems |
Operations-Driven Design Philosophy
MWB’s approach prioritized operational requirements over technological constraints. Rather than requiring enforcement staff to adapt procedures to technology limitations, we designed systems that automate and enhance established workflows.
This philosophy emphasizes automated decision-making where systems make real-time compliance determinations independently, workflow optimization ensuring technology supports existing procedures, and modular architecture enabling future expansion. This allows enforcement personnel to focus on complex cases while automated systems handle routine traffic processing.
Two-Stage Enforcement Architecture
A key innovation in our design is the two-stage enforcement model addressing the tension between highway efficiency and enforcement accuracy.
Stage One: High-Speed Pre-Selection Vehicles are screened at highway speeds without traffic disruption. Only potentially non-compliant vehicles are flagged for inspection compliant vehicles continue unimpeded. Real-time algorithms with configurable thresholds make these determinations within seconds.
Stage Two: Precision Verification Flagged vehicles receive enforcement-grade verification under controlled conditions. Precision measurements meet metrological standards while comprehensive dimensional analysis and automated citation processing create complete documentation.
This approach ensures most compliant vehicles experience no disruption while potentially non-compliant vehicles receive thorough assessment under controlled conditions.
Technical Implementation Challenges
Multi-Sensor Data Fusion
Integrating weight sensors, 3D LiDAR, and license plate recognition into a cohesive platform operating at highway speeds required sophisticated edge computing architecture. MWB designed for systems processing multiple data streams simultaneously:
Synchronized Data Acquisition: All sensors trigger with precise timing coordination
Real-Time Processing: Edge processors perform immediate validation and correlation
Intelligent Algorithms: Systems combine weight, dimensional, and identity data seamlessly
Quality Assurance: Multi-layered validation ensures data integrity across all inputs
Environmental Protection
Desert environments with extreme temperatures, sand exposure, and intense UV radiation required comprehensive protection strategies. Our solution included:
- Advanced enclosures
- UV-resistant components and corrosion-protected materials
- Integrated thermal protection
- Sealed sensor housings with self-cleaning capabilities
These measures ensure consistent system performance across challenging environmental conditions while minimizing maintenance requirements.
Network Architecture
Our communications design ensures reliable data transmission across geographically dispersed sites. Primary fibreoptic networks with MPLS services provide guaranteed bandwidth, while cellular backup systems with automatic failover maintain operations during connectivity disruptions.
The distributed processing approach maintains local enforcement capabilities even during external connectivity failures, a critical requirement for continuous operations.
Real-Time Decision Processing
Making accurate compliance decisions within the brief window available at highway speeds required implementing a sophisticated decision engine with multiple processing stages:
Edge Level Processing: Real-time sensor validation, preliminary violation detection, and immediate driver messaging generation
System Level Analytics: Multi-parameter correlation analysis, historical pattern recognition, and confidence scoring for enforcement decisions
This hierarchical approach achieves reliable violation detection while maintaining rapid response times and reducing manual intervention requirements.
Technology Integration Platform
The system integrates multiple technologies into a unified platform:
Sensing Technologies: Precision WIM sensors with embedded detection, 3D LiDAR scanners providing dimensional accuracy, and multi-angle license plate capture systems with infrared illumination
Processing Infrastructure: Edge computing for real-time processing, centralized servers for comprehensive data management, AI platforms enabling continuous learning, and integration hubs connecting with existing enforcement systems
Communication Networks: Hierarchical architecture with high-capacity connections, industrial Ethernet with QoS prioritization, security frameworks with encrypted transmission, and redundant pathways with automatic failover
Scalable Architecture Design
MWB designed the system with expansion and technological evolution capabilities. Standardized interfaces enable component upgrades while plug-and-play sensor integration accommodates new technologies. The architecture supports AI and machine learning applications with data structures optimized for continuous learning and predictive analytics.
API-based connectivity enables integration with external systems, standardized data formats ensure multi-vendor compatibility, and cloud-ready architecture supports future migration possibilities.
Automated Processing Implementation
The system implements tiered processing based on compliance status:
Compliant Vehicles: Automatic clearance with minimal disruption and comprehensive data logging for analytics
Minor Violations: Automated fine processing with optional secondary inspection bypass and digital evidence generation
Moderate Violations: Mandatory secondary inspection with enhanced evidence collection and automated citation processing
Severe Violations: Direction to enforcement areas with load correction requirements and escalation protocols
Communication and Monitoring Capabilities
Driver Communication Systems
Dynamic messaging provides vehicle specific information including license plate display, multi-language support, graphical symbols, and timing optimized for highway speeds. Strategic placement ensures adequate driver reaction time with positioning providing sufficient message display duration.
Monitoring and Detection
Evasion detection capabilities include highway-level monitoring through dedicated license plate recognition, bypass route monitoring, cross-referencing systems for violation tracking, and automated alert generation for enforcement officers.
AI-enhanced surveillance provides behavioural analysis, automated incident detection, vehicle classification and tracking, and integration with enforcement workflows. Advanced analytics support pattern recognition for enforcement optimization, predictive maintenance capabilities, and continuous system improvement.
Project Implementation Approach
MWB’s systems engineering methodology ensured comprehensive project execution from concept through delivery. Our approach included detailed requirements analysis, iterative design validation, testing protocols, and performance validation against specifications.
Stakeholder engagement remained central with regular client consultation and feedback integration, cross-functional design reviews, operational workflow validation, and training planning. Quality assurance encompassed compliance with international standards, local transportation guidelines, environmental regulations, and cybersecurity protection requirements.
Documentation included concept of operations, comprehensive design reports and drawings, detailed specifications, BOQ, tender documentation including consideration for long term system maintenance and operation.
Performance Outcomes and Benefits
The implemented system achieves significant improvements in measurement accuracy compared to traditional systems, substantial reductions in traffic disruption, decreased manual processing requirements, and successful integration of multiple sensor technologies.
Benefits include enhanced infrastructure protection extending asset lifespan, improved transportation efficiency supporting commerce, reduced environmental impact through optimized traffic flow, and comprehensive data collection enabling informed decision-making.
Technical Insights and Lessons
Implementation Insights: Edge computing proves essential for real-time processing requirements; timing synchronization is critical for effective data correlation; environmental protection requirements often exceed standard specifications; redundancy design prevents system vulnerabilities.
Project Management Observations: Early stakeholder engagement prevents scope modifications, regular communication maintains project momentum, operational workflow validation ensures user acceptance.
Design Considerations: Operations-focused approaches improve user adoption, iterative validation reduces implementation risks, thorough documentation facilitates future support, standards compliance ensures long-term viability.
Future Applications and Opportunities
This Smart WIM implementation provides a scalable architecture for network expansion. The AI-ready platform supports future enhancements while environmental benefits include reduced emissions and optimized freight routing.
The project creates opportunities for advanced transportation enforcement systems, expanded AI integration applications, and sustainable infrastructure development models that can be applied across various transportation contexts.
Strategic Value and Impact
MWB’s delivery of this Smart WIM system design demonstrates capabilities in complex system integration and operational implementation. The project advances Smart WIM technology while providing a practical model for transportation infrastructure development, and reinforces MWB’s track record in challenging technical environments.
